Turnkey Water Treatment Reclaim System for Wastewater in a Food Processing Plant

Turnkey Water Treatment Reclaim System for Wastewater in a Food Processing Plant

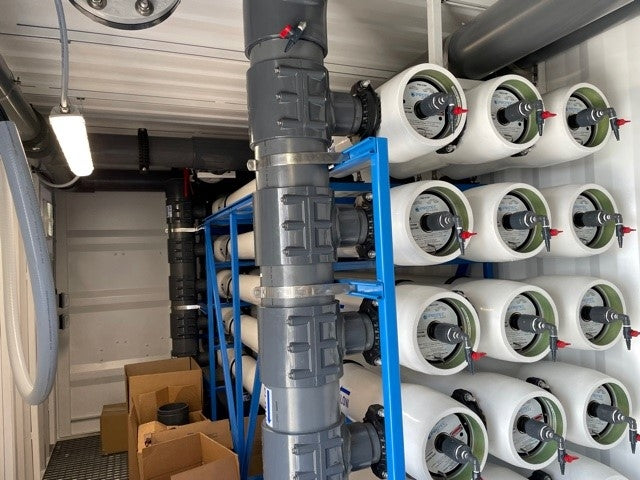

Turnkey ultrafiltration water treatment system to treat effluent water with intermittent oil content for reuse. The 1,200 gpm Ultrafiltration (UF) system uses specialty membranes which are resistant to oily water fouling. The system is installed in two 40ft industrial grade insulated containers and features automatic operation with PLC and touchscreen interface.

The UF system removes micro-organisms and turbidity before being recycled to the process loop.

The membranes are backwashed using a Chemical-enhanced backwash system

Applied Membranes was responsible for removal of existing system and Engineering, Procurement and Construction (EPC) of the complete plant. The plant was commissioned and operated initially by AMI engineers.

Request A Quote
Flow Rate 1,200 GPM 4,543 LPM 6,541 M3/Day USA 2020
Application Food and Dairy Processing

Technologies Used

  • Ultrafiltration
  • Chemically enhanced backwash

Special Features

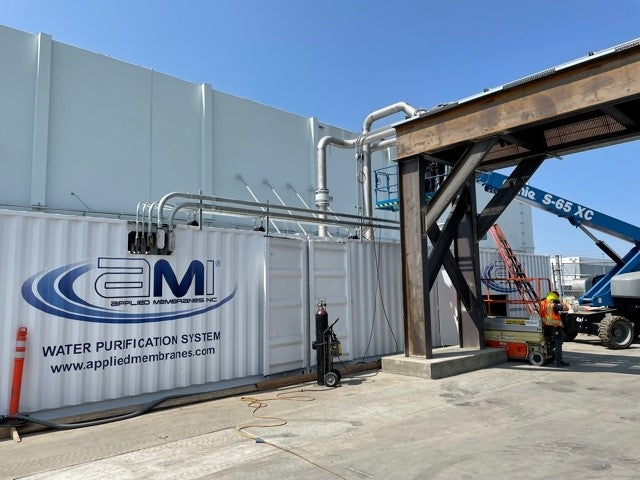

  • Installed in Two 40’ ISO Containers, uses proprietary UF membranes
  • Bridge built to carry pipes from one side of the street to other
